total flooding solution

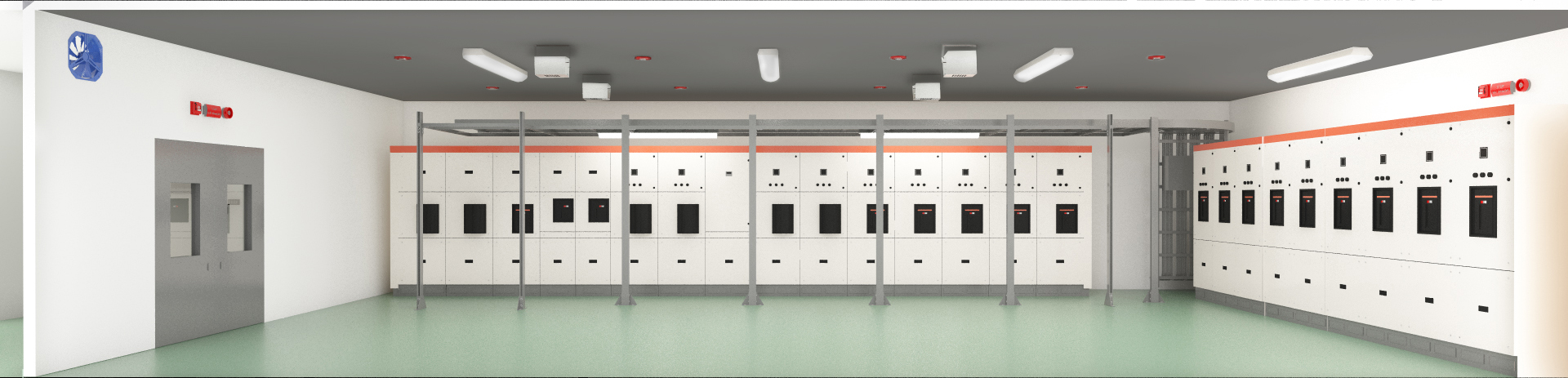

HAFEX Total Flooding
Total flooding pre-engineered system design:

HAFEX Hybrid protects any enclosure irrespective of volume, and compliance with the local fire legislation, standard and norms.

Design calculations methods are described in detail, in engineering guidelines such as NFPA2010, ISO15779, EN 15276 and IMO MSC.1/Circ.1270.

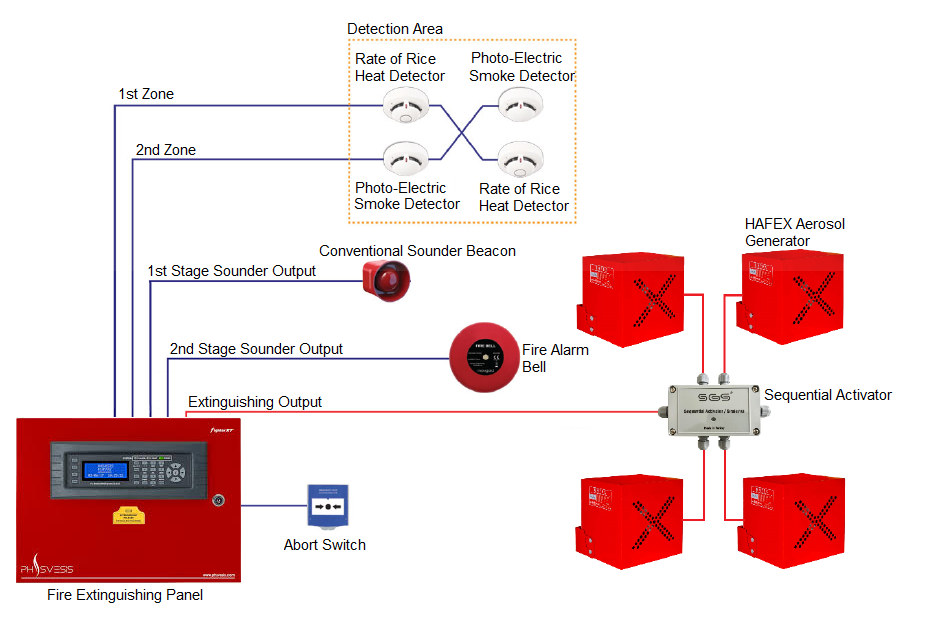

HAFEX Schematic drawing
Basic system components:

1 - Fire Alarm and Extinguishing Panel with Auto / Manual Isolator Switch

2 - 1st Stage Sounder Beacon

3 - 2nd Stage Sounder Beacon Smoke Detector

4 - Conventional Smoke Detector

5 - Conventional Heat Detector

6 - Abort Switch

7 - HAFEX Sequential Activator

8 - HAFEX Aerosol Generators

Small type total flooding (stand-alone)

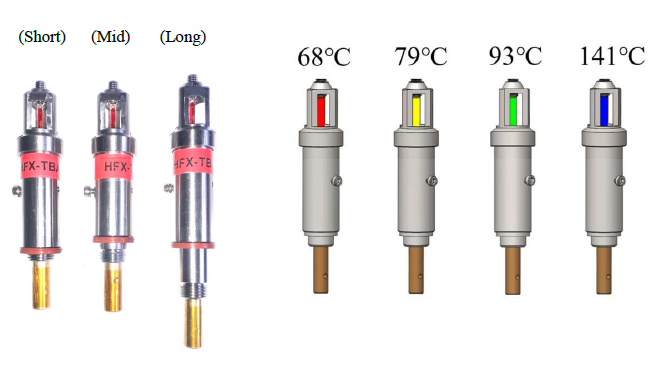

Hafex Thermo-bulb Activator (hfx-tba)
BTA

HAFEX thermo-bulb activator (HFX-TBA) with glass thermo-bulb sensitive to ambient temperature, is suitable to use in small volumes such as electrical cabinets, battery compartments, diesel generators, engines, electronic equipment, or fuse compartments of vehicles.

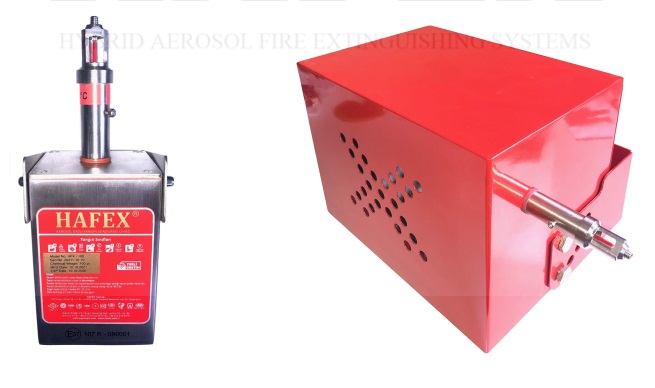

It is a mechanical point temperature sensing infrastructure that does not require electrical energy or fire control panel to activate the HAFEX Mini and Grand aerosol fire extinguishing generators and it's designed to meet the most basic level of protection.

Depending on the characteristics of the environment, the appropriate activation temperature threshold (68C, 79C, 93C or 141C) can be selected.
